FILTER CELLS
narrow pleated
 |
 |
 |
 |
 |
 |
Filter cells with high-strength, waterproof fiberglass paper medium "filtex Narrow Pleat". High air volume rates can be filtered with low cross-sectional area. The filter efficiency starts on high level.
The standard frame is made of massive hard plastic. This allowes super tight fitting without air leaking.
Compared to standard filter cells the product line "pleat line" provides 40% higher filter efficiency! The filters fulfill the highest hygiene claims of standard EN779.
filtex produces the fitercells with frame materials plastic, hard cardboard, metal or aluminum.
filtex® also offers special types for high temperature applications with flange frame, wedge shape..
Application range:
As a prefilter in all kinds air handling units or exhaust air machines and AC-units. As filter elements in special dust removal equipments, dust collection units etc..
Ideally for the substitution of normal filter cells in order to improve filter efficiency.
Types - Filter classes - Medium:
Charakteristics:

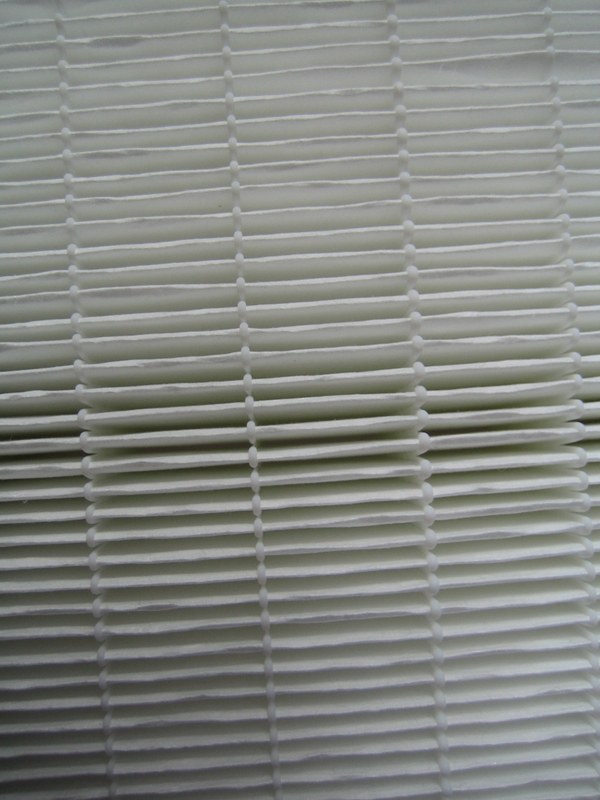

Filter media filtex® Narrow Pleat glass fibre paper
Highest filter efficiency for fine dust
High initial filter efficiency
Hygienic conform VDI6022
Exact frame construction for supertight fitting
Frame material metal, Al, plastic, Impregnated hard cardboard frame
Special types for high temperature
Frame depth 50/100, special depth on request
All dimensions, special dimensions on request
Technical data see TECHDOC or on request
As a prefilter in all kinds air handling units or exhaust air machines and AC-units. As filter elements in special dust removal equipments, dust collection units etc..
Ideally for the substitution of normal filter cells in order to improve filter efficiency.
Types - Filter classes - Medium:

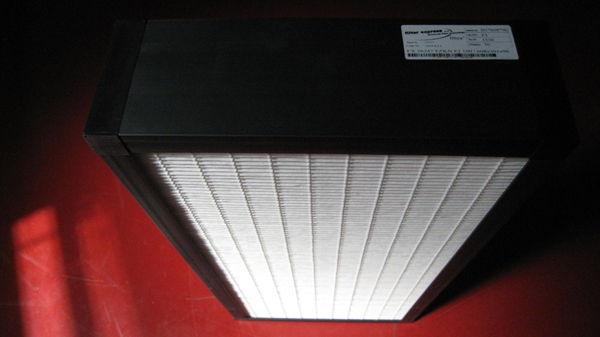

| FZKN with plastic frame | class F5-F9 | medium filtex Narrow Pleat |

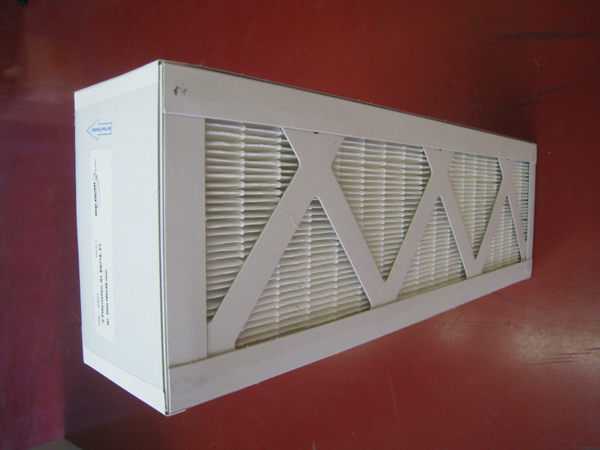

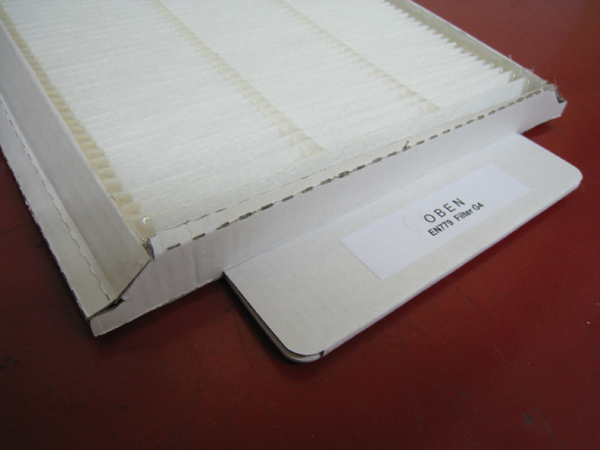

| FZN with cardboard frame | class F5-F9 | medium filtex Narrow Pleat |
| FZMN with metal frame | class F5-F9 | medium filtex Narrow Pleat |

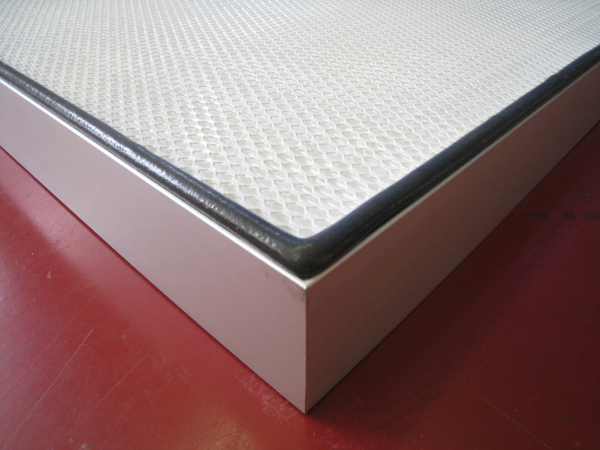

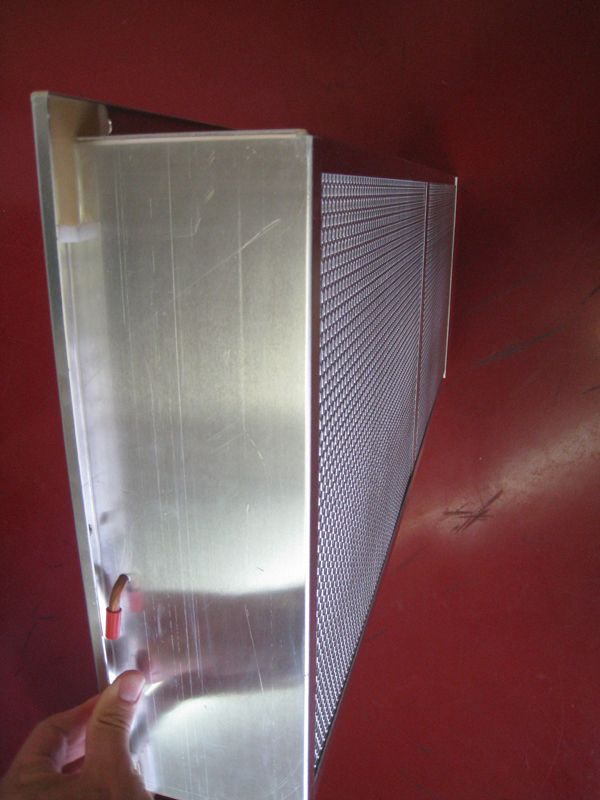

| FZAN with aluminum frame | class F5-F9 | medium filtex Narrow Pleat |
Charakteristics:
Filter media filtex® Narrow Pleat glass fibre paper
Highest filter efficiency for fine dust
High initial filter efficiency
Hygienic conform VDI6022
Exact frame construction for supertight fitting
Frame material metal, Al, plastic, Impregnated hard cardboard frame
Special types for high temperature
Frame depth 50/100, special depth on request
All dimensions, special dimensions on request
Technical data see TECHDOC or on request
