FILTER CELLS
panel...paint stop
 |
 |
 |
 |

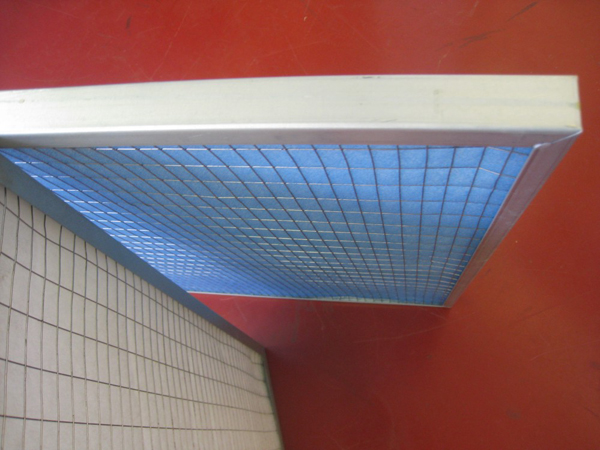

Flat filter cells with cardboard or metal frame:
The filter cell consists of synthetic filter medium hold by supporting grids on both sides. The filter is fixed close in a stable cell frame made of galvanised steel or hard cardboard.

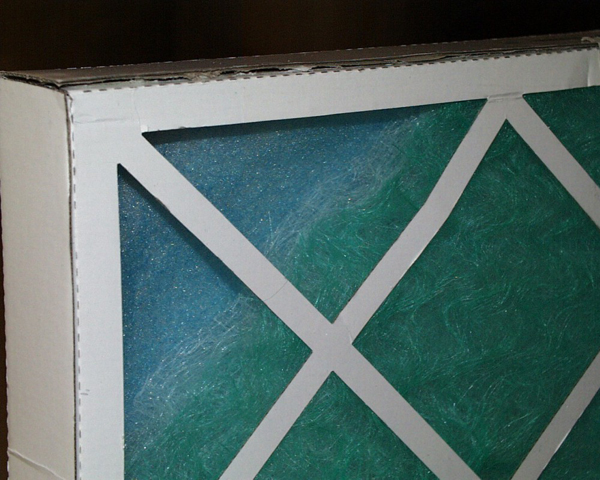

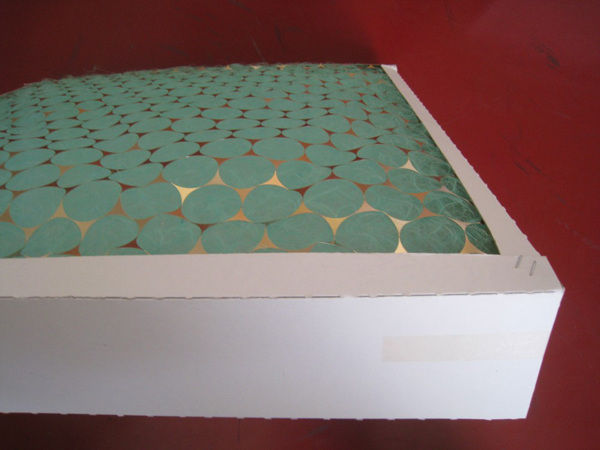

filter cells with fibre glass medium with cardboard frame:
The filter medium consists of surface-treated fiberglass mat. The filter medium is installed flatly and close in a stable cell frame of special cardboard.
Handle protection grids on both sides
Application range:
As a coarse dust filter or varnish fog filter in painting plants, paint stop filter in spray booth, for exhaust air machines, grinding dust filtering etc..
Also used as a first step in exhaust air filtering.
Types - Filter classes - Medium:
Characteristics:
Optional synthetic filters see product line "panel"
Metal frame or special cardboard
Glass fibre paint stop filters
Sandwich filters
All standard dimensions
Special dimensions on request
Technical data see TECHDOC or on request
As a coarse dust filter or varnish fog filter in painting plants, paint stop filter in spray booth, for exhaust air machines, grinding dust filtering etc..
Also used as a first step in exhaust air filtering.
Types - Filter classes - Medium:
| FZF with cardboard frame | class G2-F5 | synthetic filters see product line ""panel"" |
| FZMF with metal frame | class G2-F5 | synthetic filters see product line ""panel"" |

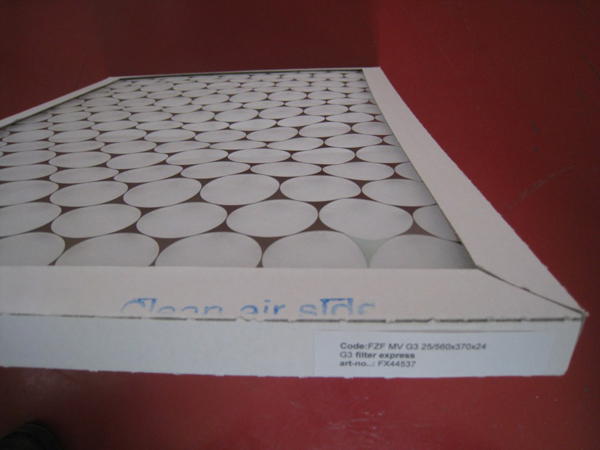

| FZF MV with cardboard frame | class G2-G3 | glass fibre pamel |
| FZF MV-MS29 with cardboard frame | class G4 | glass fibre/synthetic |
Characteristics:
Optional synthetic filters see product line "panel"
Metal frame or special cardboard
Glass fibre paint stop filters
Sandwich filters
All standard dimensions
Special dimensions on request
Technical data see TECHDOC or on request
